Technical datasheet
GM-2000 Door Closer
Door closer series
QIHENGDoorControls
Issued: September 29, 2026
GM-2000 is a hydraulic door closer rated for doors up to 1250 mm wide. It belongs to our door-closer series, for everyday residential and commercial openings.
Our catalog also lists a heavier made-to-order door weight for this model. Whether it needs a different configuration is pending factory confirmation.
| Power size | 4 |
|---|---|
| Max door width | 1250 mm |
| Door weight | 85-100 kg |
| Hold-open | No hold-open — the door closes from any angle up to 180°. |
| Max opening angle | 180° |
| Body material | Die-cast aluminium alloy |
| Finish | Three-layer gloss paint |
| Tested open/close cycles | At least 1,000,000 cycles |
| Operating temperature | Down to -45 °C |
| Body length | 226 mm |
| Warranty | 5 years |

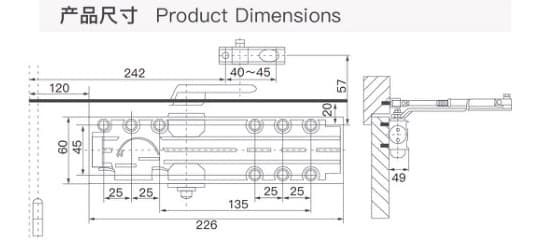

Dimensions
What you can adjust
- Two-stage closing speed. The main swing and the final latch are adjusted separately — the factory quotes 180°–15° for the sweep and 15°–0° for the latch. In practice that means you can slow the door down without leaving it too weak to push the latch home.
- Adjustable closing power. Closing force is set on the unit itself rather than fixed at the factory, so one model covers a range of door sizes and can be tuned after it is hung.
- Backcheck (BC). Resists the door near the end of its opening swing, so wind or a hard shove does not throw the leaf into the wall behind it.
- Delayed action (DA). Holds the door open for a moment before it starts to close — useful where people carry things through, or where a wheelchair needs the time.
Finishes
- Silver
- Gold
- Black
- White
- Brown
Testing this model is listed on
This model is not listed on any of our current test documents.
